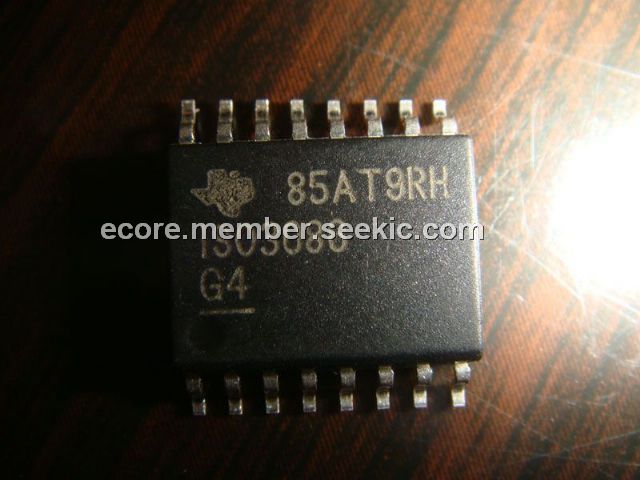

Product Summary

The ISO3086 is isolated full-duplex differential line drivers and receivers. This device is ideal for long transmission lines since the ground loop is broken to allow for a much larger common-mode voltage range. The symmetrical isolation barrier of the device is tested to provide 2500 Vrms of isolation for 60s between the bus-line transceiver and the logic-level interface. Any cabled I/O can be subjected to electrical noise transients from various sources. This noise transient can cause damage to the transceiver and/or near-by sensitive circuitry if they are of sufficient magnitude and duration. This isolated device can significantly increase protection and reduce the risk of damage to expensive control circuits. The ISO3086 is qualified for use from –40℃ to 85℃.

Parametrics

Absolute maximum ratings: (1)Input supply voltage, VCC1, VCC2, VCC: –0.3 to 6V; (2)Voltage at any bus I/O terminal, VO: –9 to 14V; (3)Voltage input, transient pulse, A, B, Y, and Z (through 100Ω), VIT: –50 to 50V; (4)Voltage input at any D, DE or RE terminal, VI: –0.5 to 7V; (5)Receiver output current, IO: ±10mA; (6)Maximum junction temperature, TJ: 150℃.

Features

Features: (1)4000-VPEAK Isolation; (2)Bus-Pin ESD Protection; (3)1/8 Unit Load – Up to 256 Nodes on a Bus; (4)Meets or Exceeds TIA/EIA RS-485 Requirements ISO3080 Full-Duplex 200 kbps; (5)Signaling Rates up to 20 Mbps; (6)Thermal Shutdown Protection; (7)Low Bus Capacitance – 16 pF (Typ); (8)50 kV/ms Typical Transient Immunity; (9)Fail-safe Receiver for Bus Open, Short, Idle; (10)3.3-V Inputs are 5-V Tolerant.

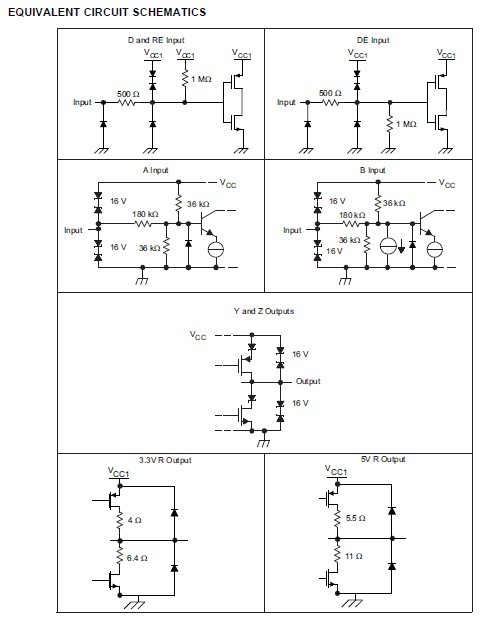

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ISO3086DW
ISO3086DW

Texas Instruments

Isolator Interface IC Iso 5V Full & Half- Duplex RS-485 Xcvr

Data Sheet

0-1: $5.40
1-25: $4.43
25-100: $3.73
100-250: $3.44
ISO3086DWG4
ISO3086DWG4

Texas Instruments

Isolator Interface IC Iso 5V Full & Half Duplex RS-485 Xcvr

Data Sheet

0-1: $4.75
1-25: $4.00
25-100: $3.67
100-250: $3.35
ISO3086TDW
ISO3086TDW

Texas Instruments

Isolator Interface IC ISOLATED 485 XCEIVER

Data Sheet

0-1: $4.82
1-25: $4.49
25-100: $4.05
100-250: $3.72
ISO3086TDWR
ISO3086TDWR

Texas Instruments

Isolator Interface IC ISOLATED 485 XCEIVER

Data Sheet

0-1600: $2.48
1600-2000: $2.46
ISO3086DWRG4
ISO3086DWRG4

Texas Instruments

Isolator Interface IC Iso 5V Full & Half Duplex RS-485 Xcvr

Data Sheet

0-1505: $2.39
1505-2000: $2.30
ISO3086DWR
ISO3086DWR

Texas Instruments

Isolator Interface IC Iso 5V Full & Half- Duplex RS-485 Xcvr

Data Sheet

0-1505: $2.39
1505-2000: $2.30
ISO3086TEVM
ISO3086TEVM

Texas Instruments

Interface Development Tools ISO3086T EVM

Data Sheet

0-1: $33.17
ISO3086TEVM-436
ISO3086TEVM-436

Texas Instruments

Interface Development Tools ISO3086T EVM

Data Sheet

0-1: $33.17
