Product Summary

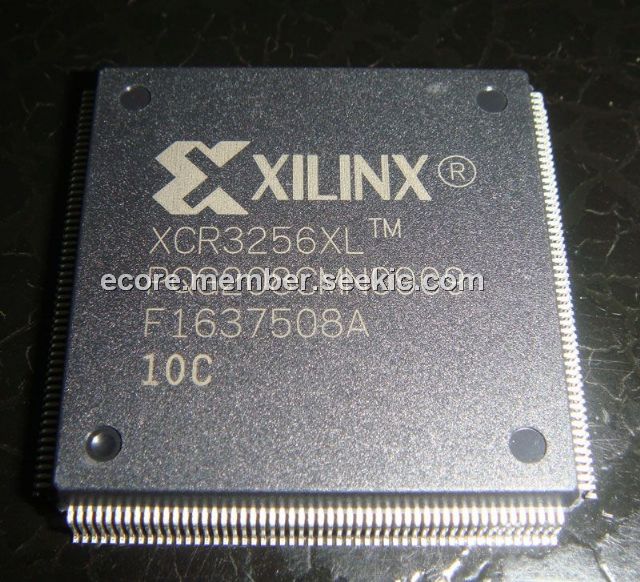

The CoolRunner XPLA3 XCR3256XL-10PQG208C device is a 3.3V, 256 macrocell CPLD targeted at power sensitive designs that require leading edge programmable logic solutions. A total of 16 function blocks provide 6,000 usable gates. Pin-to-pin propagation delays are as fast as 7.0 ns with a maximum system frequency of 154 MHz.
Parametrics
DC Electrical Characteristics: (1)Output High voltage, VOH, VCC = 3.0V to 3.6V, IOH = –8 mA: 2.4V; (2)Output High voltage, VOH, VCC = 2.7V to 3.0V, IOH = –8 mA: 2.0V; (3)Output High voltage, VOH, IOH = –500μA: 90%VCC; (4)Output Low voltage for 3.3V outputs,VOL, IOL = 8mA: 0.4V; (5)Input leakage current, IIL, VIN = GND or VCC to 5.5V: 10 to 10μA; (6)I/O High-Z leakage current, IIH, VIN = GND or VCC to 5.5V: –10 to 10μA; (7)Standby current, ICCSB, VCC=3.6V: 30.5 to 100μA; (8)Dynamic current, ICC, f = 1MHz: 2mA; (9)Dynamic current, ICC, f = 50 MHz: 60mA; (10)Input pin capacitance, CIN, f =1MHz: 8pF; (11)Clock input capacitance, CCLK, f =1MHz: 5 to 12pF; (12)I/O pin capacitance, CI/O, f =1MHz: 10pF.
Features
Features: (1)Low power 3.3V 256 macrocell CPLD; (2)7.0 ns pin-to-pin logic delays; (3)System frequencies up to 154 MHz; (4)256 macrocells with 6,000 usable gates; (5)Available in small footprint packages; (6)Optimized for 3.3V systems; (7)Advanced system features; (8)Fast ISP programming times; (9)Port Enable pin for additional I/O; (10)2.7V to 3.6V supply voltage at industrial grade voltage range; (11)Programmable slew rate control per output; (12)Security bit prevents unauthorized access.

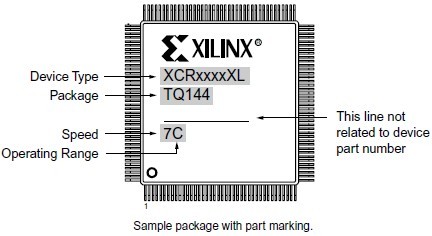

Diagrams
 |
