Product Summary

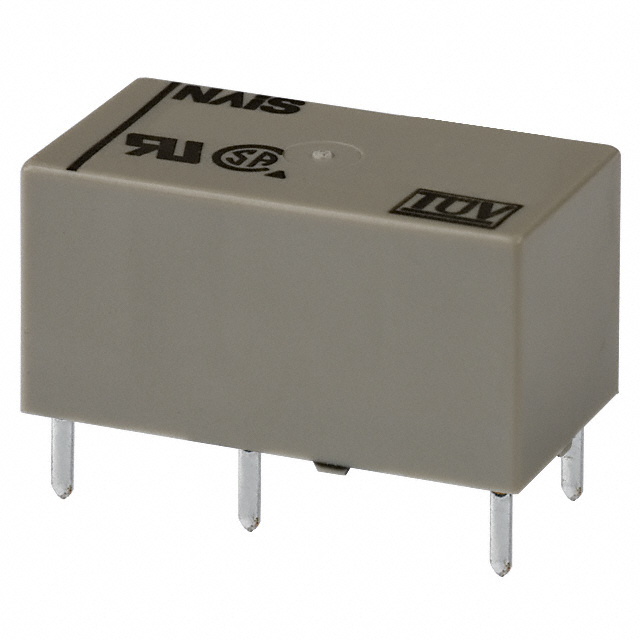

The DSP2A-DC24V is a 2 form A type miniature power relay in DS relay series. This relay is compliance with RoHS directive. It is high contact pressure, low contact bounce, and wiping operation improve resistance to weld bonding. Resistant against lamp load and dielectric loading: 1a achieves maximum switching capacity of 2,000 VA (8A 250 V AC). This device has a wide application in office and industrial electronic devices, terminal devices of information processing equipment, such as printer, data recorder.

Parametrics

Absolute maximum ratings: (1)Breakdown voltage (Initial), Between open contacts: 1,000Vrms for 1min(Detection current: 10mA); (2)Breakdown voltage (Initial), Between contact sets: 2,000Vrms(Detection current: 10mA.); (3)Breakdown voltage (Initial), Between contact and coil: 3,000Vrms for 1min(Detection current: 10mA); (4)Surge breakdown voltage, between contacts and coil: 5,000V; (5)Temperature rise (at 65℃ 149°F): Max. 55℃; (6)Operate time [Set time] (at 20°C 68°F): Max. 10 ms; (7)Release time [Reset time] (at 20°C 68°F) Max. 5 ms(without diode).

Features

Features: (1)Compact with high contact rating; (2)High switching capability; (3)High sensitivity; (4)High breakdown voltage; (5)Latching types available; (6)Wide variation; (7)Sealed construction allows automatic washing.; (8)Complies with safety standards.

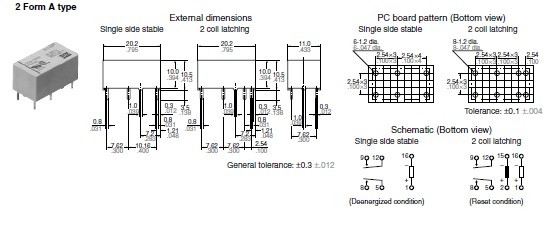

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

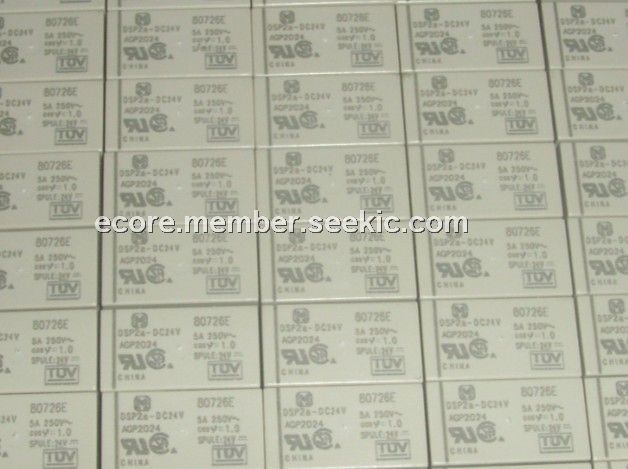

DSP2A-DC24V
DSP2A-DC24V

Panasonic Electric Works

General Purpose / Industrial Relays 5A 24VDC DPST NO SEALED

Data Sheet

0-1: $4.56
1-25: $4.10
25-50: $3.73
50-100: $3.35
DSP2A-DC24V-R
DSP2A-DC24V-R

Panasonic Electric Works

General Purpose / Industrial Relays 2 Form A 24VDC 2 Form A

Data Sheet

0-1: $5.03
1-25: $4.61
25-50: $4.12
50-100: $3.49
