FAN7382

FAN7382, IC gate driver, 8-DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~3.00

PartNumber:: FAN7382

Brand:: Fairchild Semiconductor - Fairchild | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Eric's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-04-11

From Other Seller

Part Number:FAN7382
US $0.50 - 3.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

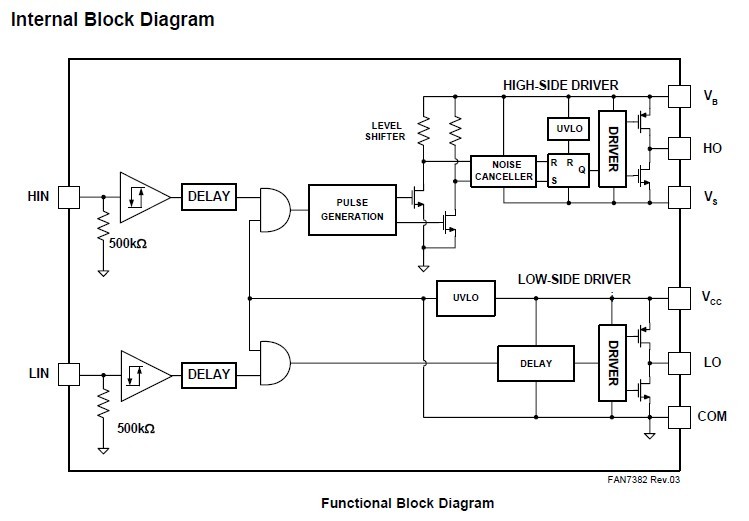

The FAN7382, a monolithic half-bridge gate-driver IC, can drive MOSFETs and IGBTs that operate up to +600V. Fairchilds high-voltage process and commonmode noise canceling technique provides stable operation of the high-side driver under high-dv/dt noise circumstances. An advanced level-shift circuit allows high-side gate driver operation up to VS=-9.8V (typical) for VBS=15V. The input logic level is compatible with standard TTL-series logic gates. UVLO circuits for both channels prevent malfunction when VCC or VBS is lower than the specified threshold voltage. Output drivers typically source/sink 350mA/650mA, respectively, which is suitable for fluorescent lamp ballasts, PDP scan drivers, motor controls, etc.

Parametrics

Absolute maximum ratings: (1)High-side offset voltage, VS: VB-25 to VB+0.3V; (2)High-side floating supply voltage, VB: -0.3 to 625V; (3)High-side floating output voltage HO, VHO: VS-0.3 to VB+0.3V; (4)Low-side and logic fixed supply voltage, VCC: -0.3 to 25V; (5)Low-side output voltage LO, VLO: -0.3 to VCC+0.3V; (6)Logic input voltage (HIN, LIN), VIN: -0.3 to VCC+0.3V; (7)Logic ground, COM: VCC-25 to VCC+0.3V; (8)Allowable offset voltage slew rate, dVS/dt: 50V/nsec; (9)Power dissipation of 8-DIP, PD: 1.2W; (10)Thermal resistance, junction-to-ambient of 8-DIP, θJA: 100W; (11)Junction temperature, TJ: 150℃; (12)Storage temperature, TSTG: 150℃.

Features

Features: (1)Floating Channels Designed for Bootstrap Operation to +600V; (2)Typically 350mA/650mA Sourcing/Sinking Current Driving Capability for Both Channels; (3)Common-Mode dv/dt Noise Canceling Circuit; (4)Extended Allowable Negative VS Swing to -9V for Signal Propagation at VCC=VBS=15V; (5)VCC & VBS Supply Range from 10V to 20V; (6)UVLO Functions for Both Channels; (7)TTL Compatible Input Logic Threshold Levels; (8)Matched Propagation Delay Below 50nsec; (9)Output In-phase with Input.
