Product Summary

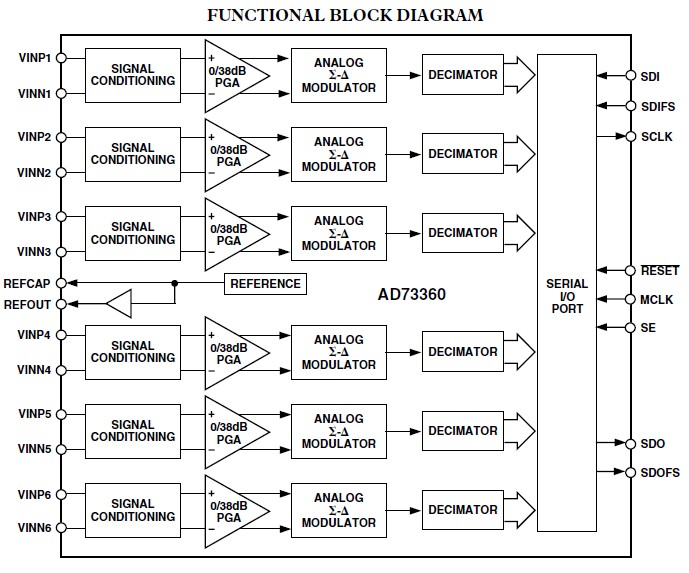

The AD73360AR is a six-input channel analog front-end processor for general purpose applications including industrial power metering or multichannel analog inputs. It features six 16-bit A/D conversion channels each of which provide 77 dB signal-tonoise ratio over a dc to 4 kHz signal bandwidth. Each channel also features a programmable input gain amplifier (PGA) with gain settings in eight stages from 0 dB to 38 dB. The AD73360AR is particularly suitable for industrial power metering as each channel samples synchronously, ensuring that there is no (phase) delay between the conversions.

Parametrics

AD73360AR absolute maximum ratings: (1)AVDD, DVDD to GND: -0.3 V to +7 V; (2)AGND to DGND: -0.3 V to +0.3 V; (3)Digital I/O Voltage to DGND: -0.3 V to DVDD + 0.3 V; (4)Analog I/O Voltage to AGND: -0.3 V to AVDD + 0.3 V; (5)Operating Temperature Range Industrial (A Version): -40℃ to +85℃; (6)Storage Temperature Range: -65℃ to +150℃; (7)Maximum Junction Temperature: +150℃; (8)SOIC, θJA Thermal Impedance: 75℃/W; (9)Lead Temperature, Soldering: Vapor Phase (60 sec): +215℃; Infrared (15 sec): +220℃.

Features

AD73360AR features: (1)Six 16-Bit A/D Converters; (2)Programmable Input Sample Rate; (3)Simultaneous Sampling; (4)77 dB SNR; (5)64 kS/s Maximum Sample Rate; (6)–83 dB Crosstalk; (7)Low Group Delay (25 μs Typ per ADC Channel); (8)Programmable Input Gain; (9)Flexible Serial Port which Allows Multiple Devices to Be Connected in Cascade; (10)Single (+2.7 V to +5.5 V) Supply Operation; (11)80 mW Max Power Consumption at +2.7 V; (12)On-Chip Reference; (13)28-Lead SOIC and 44-Lead TQFP Packages.
