Product Summary

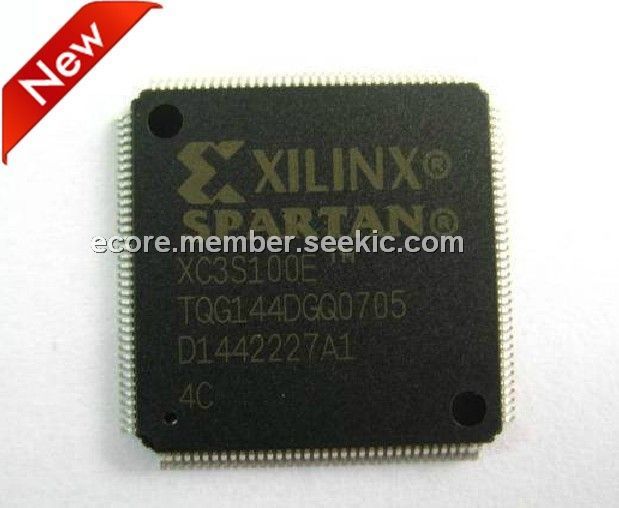

The XC3S100E-4TQG144C is a Field-Programmable Gate Array (FPGA). It is specifically designed to meet the needs of high volume, cost-sensitive consumer electronic applications. It offers densities ranging from 100,000 to 1.6 million system gates.
Parametrics
XC3S100E-4TQG144C absolute maximum ratings: (1)VCCINT, Internal supply voltage: 鈥?.5 to 1.32 V; (2)VCCAUX, Auxiliary supply voltage: 鈥?.5 to 3.00 V; (3)VCCO, Output driver supply voltage: 鈥?.5 to 3.75 V; (4)VREF, Input reference voltage :鈥?.5 to VCCO+0.5 V; (5)TJ, Junction temperature: 125鈩?max; (6)TSTG, Storage temperature: 鈥?5 to 150鈩?
Features
XC3S100E-4TQG144C features: (1)high-volume, consumer-oriented applications; (2)Proven advanced 90-nanometer process technology; (3)Abundant, flexible logic resources; (4)Up to eight Digital Clock Managers (DCMs).
Diagrams
<IMG src="http://www.seekic.com/uploadfile/ic-mfg/201253024724691.jpg" border=0>
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 XC3S100E-4TQG144C |
|
IC SPARTAN-3E FPGA 100K 144-TQFP |
Data Sheet |
|
|
||||||||||
