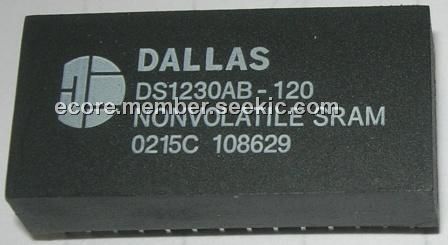

DS1230AB-120

256k Nonvolatile SRAM, DIP-28, 100NS, Unlimited write cycles, -0.3V to +7.0V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $13.00~14.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $13.00~14.00

PartNumber:: DS1230AB-120

Brand:: Dallas Semiconductor - Maxim | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Eric's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-31

From Other Seller

Part Number:DS1230AB-120
US $13.00 - 14.00
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The DS1230AB-120 is a 256k Nonvolatile SRAM. It is organized as 32,768 words by 8 bits. Each NV SRAM has a self-contained lithium energy source and control circuitry which constantly monitors VCC for an out-of-tolerance condition. The DS1230AB-120 can be used in place of existing 32k × 8 static RAMs directly conforming to the popular bytewide 28-pin DIP standard. The DIP devices also match the pinout of 28256 EEPROMs, allowing direct substitution while enhancing performance. The DS1230AB-120 in the Low Profile Module package are specifically designed for surface-mount applications. There is no limit on the number of write cycles that can be executed and no additional support circuitry is required for microprocessor interfacing.

Parametrics

DS1230AB-120 absolute maximum ratings: (1)Voltage on Any Pin Relative to Ground: -0.3V to +7.0V; (2)Operating Temperature: 0℃ to 70℃, -40℃ to +85℃ for Ind parts; (3)Storage Temperature: -40℃ to +70℃, -40℃ to +85℃ for Ind parts; (4)Soldering Temperature: 260℃ for 10 seconds.

Features

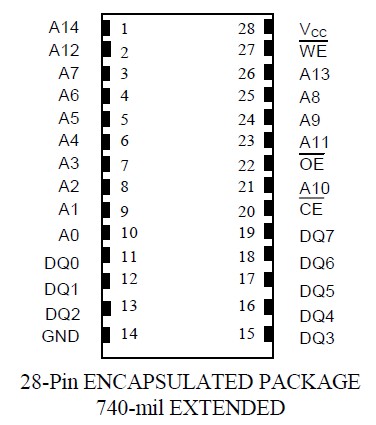

DS1230AB-120 features: (1)10 years minimum data retention in the absence of external power; (2)Data is automatically protected during power loss; (3)Replaces 32k × 8 volatile static RAM, EEPROM or Flash memory; (4)Unlimited write cycles; (5)Low-power CMOS; (6)Read and write access times as fast as 70 ns; (7)Lithium energy source is electrically disconnected to retain freshness until power is applied for the first time; (8)Full ±10% VCC operating range; (9)Optional industrial temperature range of -40℃ to +85℃, designated IND; (10)JEDEC standard 28-pin DIP package.
