AD6644AST-40

AD6644AST-40, 14-Bit A/D Converter, BGA, 0 to 7 V, 25mA, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.19~4.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
10 ~ 1000 :	4.20 / Piece
1000 ~ 10000 :	3.19 / Piece

PartNumber:: AD6644AST-40

Brand:: Analog Devices - ADI | Pack: BGA | D/C: 11+

Availability:: Supply Ability: 1/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Eric's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-28

From Other Seller

Part Number:AD6644AST-40
US $3.19 - 4.20
Quantity:

piece

Product Summary

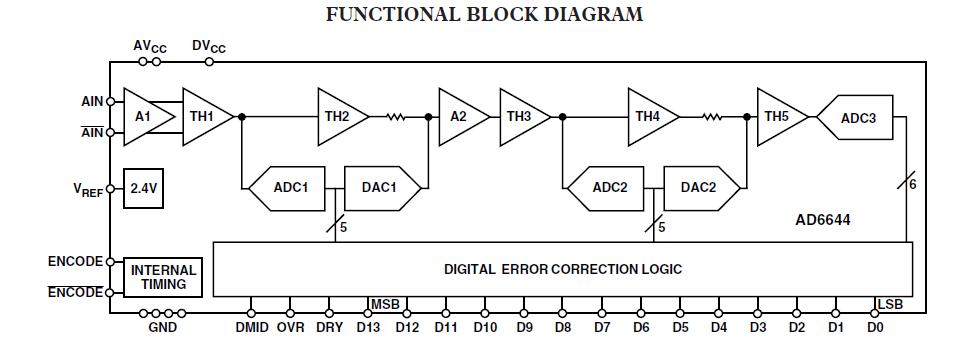

The AD6644AST-40 is a high-speed, high-performance, monolithic 14-bit analog-to-digital converter. All necessary functions, including track-and-hold (T/H) and reference, are included onchip to provide a complete conversion solution. The AD6644AST-40 provides CMOS-compatible digital outputs. It is the third generation in a wideband ADC family, preceded by the AD9042 (12-bit 41 MSPS) and the AD6640 (12-bit 65 MSPS, IF sampling.) The applications of the AD6644AST-40 include Multichannel, Multimode Receivers AMPS, IS-136, CDMA, GSM, Third Generation, Single Channel Digital Receivers, Antenna Array Processing, Communications Instrumentation, Radar, Infrared Imaging, Instrumentation.

Parametrics

AD6644AST-40 absolute maximum ratings: (1)AVCC Voltage: 0 to 7 V; (2)DVCC Voltage: 0 to 7 V; (3)Analog Input Voltage: 0 to AVCC V; (4)Analog Input Current: 25 mA; (5)Digital Input Voltage: 0 AVCC V; (6)Digital Output Current: 4 mA; (7)Operating Temperature Range(Ambient): -25 to +85℃; (8)Maximum Junction Temperature: 150℃; (9)Lead Temperature (Soldering, 10 sec): 300℃; (10)Storage Temperature Range (Ambient): -65 to +150℃.

Features

AD6644AST-40 features: (1)65 MSPS Guaranteed Sample Rate; (2)40 MSPS Version Available; (3)Sampling Jitter < 300 fs; (4)100 dB Multitone SFDR; (5)1.3 W Power Dissipation; (6)Differential Analog Inputs; (7)Digital Outputs, Two’s Complement Format; 3.3 V CMOS-Compatible; Data Ready for Output Latching.
