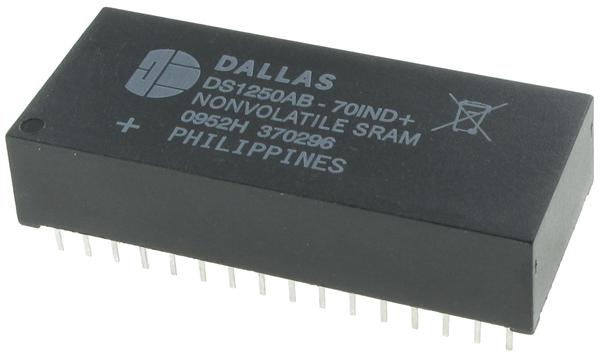

DS1250AB-70

194,304-bit, fully static, nonvolatile SRAM, DIP-32, -0.3V to +6.0V, Low-power CMOS, control circuitry

Rated 5 Rating 5 | reviews | Write a review

Price:: US $57.00~58.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $57.00~58.00

PartNumber:: DS1250AB-70

Brand:: Dallas Semiconductor - Maxim | Pack: DIP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Eric's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-30

From Other Seller

Part Number:DS1250AB-70
US $57.00 - 58.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The DS1250AB-70 is a 4,194,304-bit, fully static, nonvolatile SRAM organized as 524,288 words by 8 bits. The DS1250AB-70 has a self-contained lithium energy source and control circuitry which constantly monitors VCC for an out-of-tolerance condition. The DS1250AB-70 can be used in place of existing 512k x 8 static RAMs directly conforming to the popular byte-wide 32-pin DIP standard. There is no limit on the number of write cycles that can be executed and no additional support circuitry is required for microprocessor interfacing.

Parametrics

DS1250AB-70 absolute maximum ratings: (1)Voltage on Any Pin Relative to Ground: -0.3V to +6.0V; (2)Operating Temperature, Commercial: 0 to +70℃; Industrial: -40 to +85℃; (3)Storage Temperature: -40 to +85℃; (4)Lead Temperature (soldering, 10s): +260℃; (5)Soldering Temperature (reflow, PowerCap): +260℃.

Features

DS1250AB-70 features: (1)10 years minimum data retention in the absence of external power; (2)Data is automatically protected during power loss; (3)Replaces 512k x 8 volatile static RAM, EEPROM or Flash memory; (4)Unlimited write cycles; (5)Low-power CMOS; (6)Read and write access times of 70ns; (7)Lithium energy source is electrically disconnected to retain freshness until power is applied for the first time ; (8)Full ±10% VCC operating range; (9)Optional ±5% VCC operating range; (10)Optional industrial temperature range of -40 to +85℃, designated IND ; (11)JEDEC standard 32-pin DIP package; (12)PowerCap Module (PCM) package: Directly surface-mountable module; Replaceable snap-on PowerCap provides lithium backup battery; Standardized pinout for all nonvolatile SRAM products; Detachment feature on PCM allows easy removal using a regular screwdriver.
