Product Summary

The AD603AQ is a low noise, voltage-controlled amplifier for use in RF and IF AGC systems. It provides accurate, pin selectable gains of –11 dB to +31 dB with a bandwidth of 90 MHz or +9 dB to +51 dB with a bandwidth of 9 MHz. The AD603AQ applications: RF/IF AGC Amplifier, Video Gain Control, A/D Range Extension, Signal Measurement.

Parametrics

AD603AQ absolute maximum ratings: (1)Supply Voltage ±VS: ± 7.5 V; (2)Internal Voltage VINP (Pin 3): ± 2 V Continuous; (3)Internal Power Dissipation: 400 mW; (4)Operating Temperature Range: – 40℃ to +85℃; (5)Storage Temperature Range: –65℃ to +150℃; (6)Lead Temperature Range (Soldering 60 sec): +300℃.

Features

AD603AQ features: (1)Linear in dB Gain Control; (2)–11 dB to +31 dB with 90 MHz Bandwidth; (3)+9 dB to +51 dB with 9 MHz Bandwidth; (4)Any Intermediate Range, e.g., –1 dB to +41 dB with 30 MHz Bandwidth; (5)Bandwidth Independent of Variable Gain; (6)±0.5 dB Typical Gain Accuracy; (7)MIL-STD-883 Compliant and DESC Versions Available.

Diagrams

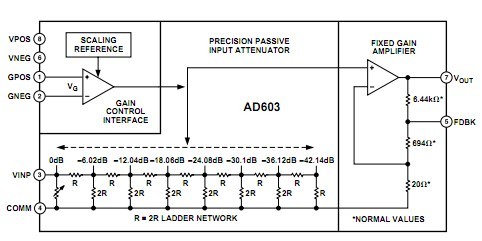

AD603AQ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

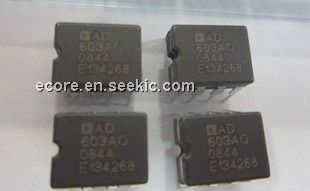

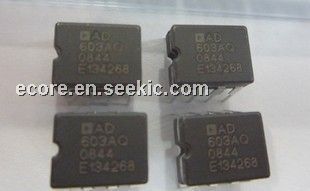

AD603AQ
AD603AQ

IC AMP VGA 90MHZ LN 50MA 8CDIP
Data Sheet
0-1: $7.20
1-10: $6.54
10-100: $5.56
100-250: $5.07
250-500: $4.75
500-1000: $4.36
