Product Summary

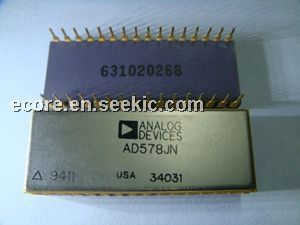

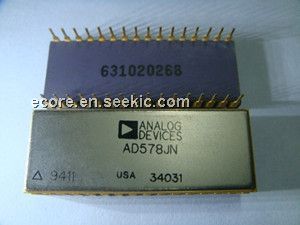

The AD578JN is a high speed 12-bit successive approximation analog-to-digital converter that includes internal clock, reference, and comparator. Its hybrid design utilizes MSI digital and linear IC in conjunction with a 12-bit monolithic, monotonic DAC to provide superior performance and versatility with IC size, price, and reliability. Important performance characteristics of the AD578JN include ±1/2 LSB linearity error maximum at +25℃, maximum gain tempco of ±30ppm/℃ and maximum conversion time of 3μs at a typical power dissipation of 555mW.

Parametrics

AD578JN absolute maximum ratings: (1)Fast conversion: 3μs; (2)low gain TC: ±30 ppm/℃; (3)Low power: 555mW.

Features

AD578JN features: (1)Complete 12-bit A/D converter with reference and clock; (2)Fast conversion: 3μs; (3)Buried zener reference for Long term stability and low gain TC: ±30 ppm/℃; (4)Max nonlinearity: <±0.012%; (5)No missing codes over temperature; (6)Low power: 555mW; (7)Available to MIL-STD-883; (8)Positive-true parallel or serial logic outputs; (9)Short cycle capability; (10)Precision +10V reference for External applications; (11)Adjustable internal clock; (12)"Z" models for ±12V supplies.

Diagrams

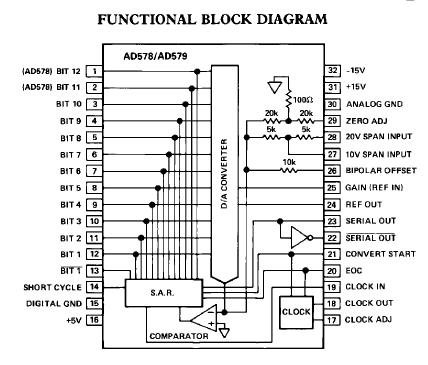

AD578JN block diagram
