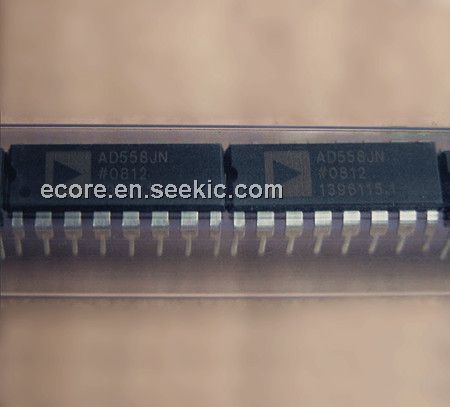

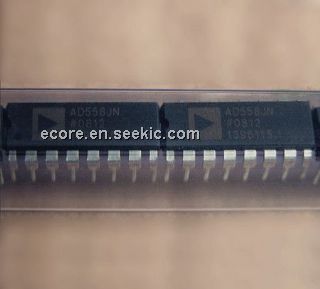

Product Summary

The AD558JN is a complete voltage-output 8-bit digital-to-analog converter. The AD558JN is including output amplifier, full microprocessor interface and precision voltage reference on a single monolithic chip. No external components or trims are required to interface, with full accuracy, an 8-bit data bus to an analog system. The performance and versatility of the AD558JN is a result of several recently-developed monolithic bipolar technologies. The complete microprocessor interface and control logic is implemented with integrated injection logic (I2L), the AD558JN is an extremely dense and low power logic structure that is process-compatible with linear bipolar fabrication.

Parametrics

AD558JN absolute maximum ratings: (1)VCC to Ground: 0 V to +18 V; (2)Digital Inputs: 0 V to +7.0 V; (3)VOUT: Indefinite Short to Ground Momentary Short to VCC; (4)Power Dissipation: 450 mW; (5)Storage Temperature Range, N/P (Plastic) Packages: -25℃ to +100℃; (Ceramic) Package: -55℃ to +150℃; (6)Lead Temperature (soldering, 10 sec): +300℃; (7)Thermal Resistance Junction to Ambient/Junction to Case, D (Ceramic) Package: 100℃/W/30℃/W; N/P (Plastic) Packages: 140℃/W/55℃/W.

Features

AD558JN features: (1)Complete 8-Bit DAC; (2)Voltage Output–2 Calibrated Ranges; (3)Internal Precision Bandgap Reference; (4)Single-Supply Operation: +5 V to +15 V; (5)Full Microprocessor Interface; (6)Fast: 1 ms Voltage Settling to 61/2 LSB; (7)Low Power: 75 mW; (8)No User Trims; (9)Guaranteed Monotonic Over Temperature; (10)All Errors Specified TMIN to TMAX; (11)Small 16-Pin DIP and 20-Pin PLCC Packages; (12)Single Laser-Wafer-Trimmed Chip for Hybrids; (13)Low Cost; (14)MIL-STD-883 Compliant Versions Available.

Diagrams

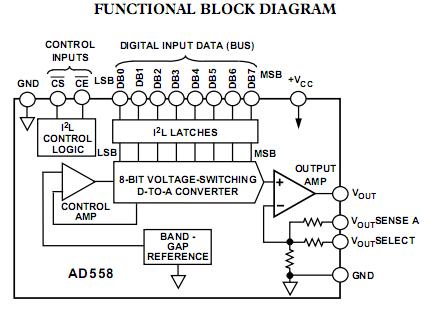

AD558JN block diagram
