Product Summary
The ACSL-6400-00TE is a truly isolated, multi-channel and bi-directional, high-speed optocoupler. Integration of multiple optocouplers in monolithic form is achieved through patented process technology. The device provides full duplex and bi-directional isolated data transfer and communication capability in compact surface mount packages. Available in 15 Mbd speed option and wide supply voltage range. The applications of the ACSL-6400-00TE include Full duplex communication, Isolated line receiver, Computer-peripheral interfaces, Microprocessor system interfaces, Digital isolation for A/D and D/A conversion, Switching power supply, Instrument input/output isolation, Ground loop elimination, Pulse transformer replacement.
Parametrics
ACSL-6400-00TE absolute maximum ratings: (1)Storage Temperature, Ts: -55 to 125℃; (2)Operating Temperature, TA: -40 to 100℃; (3)Supply Voltage (1 Minute Maximum), VDD1, VDD2: 7 V; (4)Reverse Input Voltage (Per Channel), VR: 5 V; (5)Output Voltage (Per Channel), VO: 7 V; (6)Average Forward Input Current [1] (Per Channel), IF: 15 mA; (7)Output Current (Per Channel), IO: 50 mA; (8)Input Power Dissipation[2] (Per Channel), P1: 27 mW; (9)Output Power Dissipation[2] (Per Channel), PO: 60 mW.
Features
ACSL-6400-00TE features: (1)Available in dual, triple and quad channel configurations; (2)Bi-directional; (3)Wide supply voltage range 3.0V to 5.5V; (4)High-speed: 15 MBd typical, 10 MBd minimum; (5)10kV/μs minimum Common Mode Rejection (CMR) at Vcm = 1000 V; (6)LSTTL/TTL compatible; (7)Safety and regulatory approvals (Pending); (8)2500Vrms for 1 min per UL1577; (9)CSA Component Acceptance; (10)IEC/EN/DIN EN 60747-5-2; (11)16 Pin narrow-body SOIC package for triple and quad channel; (12)-40 to 100℃ temperature range.

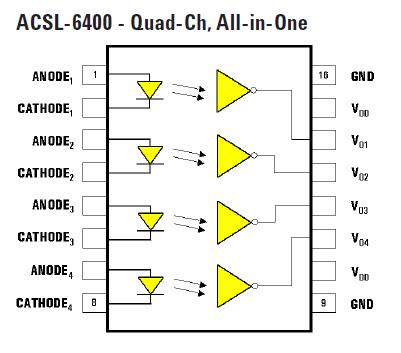

Diagrams

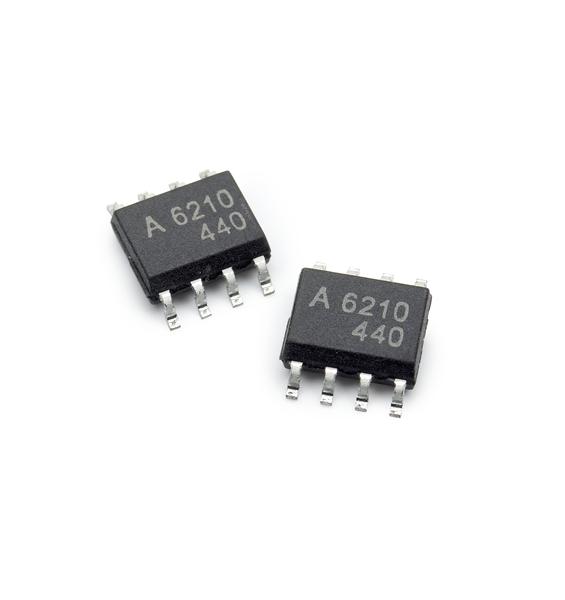

Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ACSL-6400-00TE |
Avago Technologies |
High Speed Optocouplers 3.0V - 5.5V 15MBd |
Data Sheet |
|
|
|||||||||||||
