Product Summary

The XC4VFX12-11FFG668I is an in-system programmable configuration PROM. Available in 1 to 32 Megabit (Mbit) densities, the XC4VFX12-11FFG668I I provides an easy-to-use, cost-effective, and reprogrammable method for storing large Xilinx FPGA configuration bitstreams.

Parametrics

XC4VFX12-11FFG668I absolute maximum ratings: (1)VCCINT, Internal supply voltage relative to GND: –0.5 to +4.0V; (2)VCCO, I/O supply voltage relative to GND: –0.5 to +4.0V; (3)VCCJ, JTAG I/O supply voltage relative to GND: –0.5 to +4.0V; (4)VIN, Input voltage with respect to GND VCCO < 2.5V: –0.5 to +3.6V; VCCO: ≥ 2.5V –0.5 to +5.5V; (5)VTS, Voltage applied to High-Z output VCCO < 2.5V: –0.5 to +3.6 V; VCCO ≥ 2.5V: –0.5 to +5.5V; (6)TSTG, Storage temperature (ambient): –65 to +150℃; (7)TJ, Junction temperature: +125℃.

Features

XC4VFX12-11FFG668I features: (1)SelectIO Technology; 1.5 to 3.3 V I/O Operation; Built-In ChipSync Source-Synchronous Technology; Digitally-controlled impedance (DCI) active termination; Fine grained I/O banking (Configuration in one bank); (2)Flexible Logic Resources; (3)Built-in System Monitor (voltage/temp. measurement); (4)10-bit, 200kSPS A/D Converter (ADC); (5)Secure Chip AES Bitstream Encryption; (6)90-nm copper CMOS process; (7)1.2V core voltage; (8)Flip-Chip Packaging; (9)RocketIO 622 Mb/s to 11.1 Gb/s Multi-Gigabit Transceivers (MGT) (FX only); (10)IBM PowerPC RISC Processor Core (FX only):l PowerPC 405 (PPC405) Core; Auxiliary Processor Unit Interface (User Coprocessor); (11)Multiple Tri-Mode Ethernet MACs (FX only).

Diagrams

XC4VFX12-11FFG668I block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

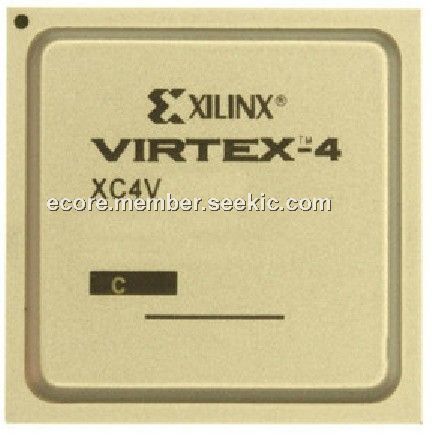

XC4VFX12-11FFG668I
XC4VFX12-11FFG668I


IC FPGA VIRTEX-4 FX 12K 668FCBGA

Data Sheet

0-3: $180.60
