Product Summary

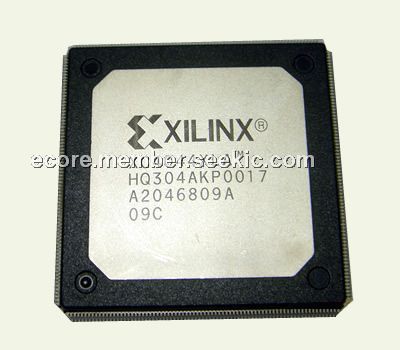

The XC4044XLA-09HQ304C is a Field Programmable Gate Array which is improved versions of XC4000XL devices. The XC4000XV devices have the same features as XLA devices, incorporate additional interconnect resources and extend gate capacity to 500,000 system gates.
Features
features: (1)XLA Devices Require 3.0 - 3.6 V (VCC); (2)XV Devices Require 2.3- 2.7 V (VCCINT) and 3.0 - 3.6 V (VCCIO); (3)5.0 V TTL compatible I/O; (4)3.3 V LVTTL, LVCMOS compliant I/O; (5)5.0 V and 3.0 V PCI Compliant I/O; (6)12 mA or 24 mA Current Sink Capability; (7)Safe under All Power-up Sequences; (8)XLA Consumes 40% Less Power than XL; (9)XV Consumes 65% Less Power than XL; (10)Optional Input Clamping to VCC (XLA) or VCCIO (XV).

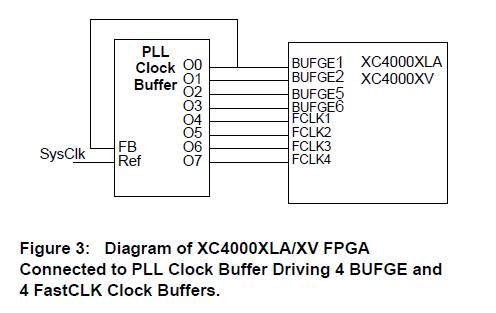

Diagrams
XC4000 |
Other |
Data Sheet |
Negotiable |
|
||||||
XC4000A |
Other |
Data Sheet |
Negotiable |
|
||||||
XC4000E |
Other |
Data Sheet |
Negotiable |
|
||||||
XC4000H |
Other |
Data Sheet |
Negotiable |
|
||||||
XC4000X |
Other |
Data Sheet |
Negotiable |
|
||||||
XC4000XL |
Other |
Data Sheet |
Negotiable |
|
