Product Summary
The DS1553-100 is a full-function, year-2000-compliant (Y2KC) real-time clock/calendar (RTC) with an RTC alarm, watchdog timer, power-on reset, battery monitor, and 8k × 8 nonvolatile static RAM. User access to all registers within the DS1553-100 is accomplished with a byte-wide interface. The RTC registers contain century, year, month, date, day, hours, minutes, and seconds data in 24-hour BCD format. Corrections for day of month and leap year are made automatically.
Parametrics
DS1553-100 absolute maximum ratings: (1)Voltage Range on Any Pin Relative to Ground: -0.3V to +6.0V; (2)Storage Temperature Range: -40 to +85℃; (3)Lead Temperature (soldering, 10s): +260℃; (4)Soldering Temperature (reflow): +260℃.
Features
DS1553-100 features: (1)Integrated NV SRAM, RTC, Crystal, Power-Fail Control Circuit, and Lithium Energy Source; (2)Clock Registers are Accessed Identically to the Static RAM; These Registers are Resident in the 16 Top RAM Locations; (3)Totally Nonvolatile with Over 10 Years of Operation in the Absence of Power; (4)Precision Power-On Reset; (5)Programmable Watchdog Timer and RTC Alarm; (6)BCD-Coded Year, Month, Date, Day, Hours, Minutes, and Seconds with Automatic Leap Year Compensation Valid Up to the Year 2100; (7)Battery Voltage Level Indicator Flag; (8)Power-Fail Write Protection Allows for 10% VCC Power-Supply Tolerance; (9)Lithium Energy Source is Electrically Disconnected to Retain Freshness Until Power is Applied for the First Time.

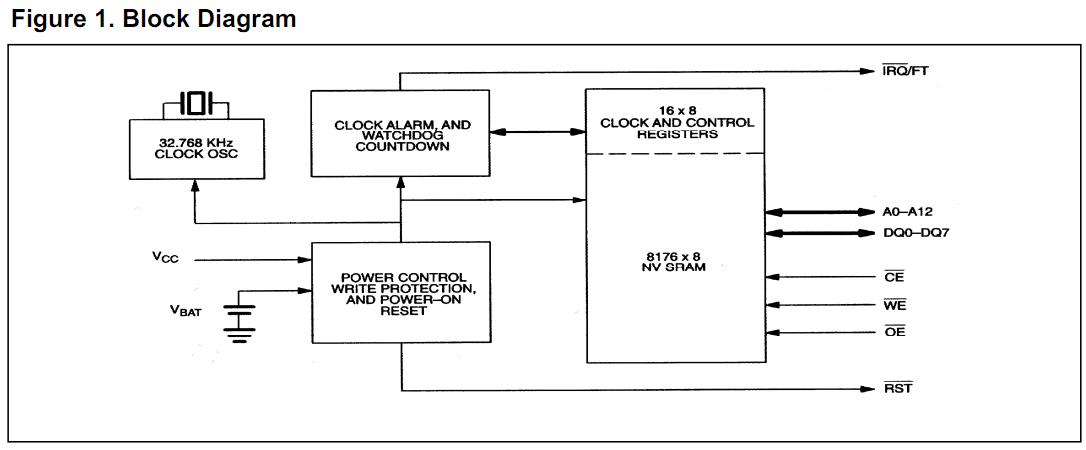

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DS1553-100 |
Maxim Integrated Products |
Real Time Clock |
Data Sheet |
Negotiable |
|
||||||||||||
|
DS1553-100+ |
Maxim Integrated Products |
Real Time Clock 64kB NV RAM Timekeeper |
Data Sheet |
|
|
||||||||||||
