ADV7123

ADV7123, digital-to-analog converter, BGA, 7V, 2.0 to 26.5 mA, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.24~4.59 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	4.59 / Piece
100 ~ 1000 :	3.24 / Piece

PartNumber:: ADV7123

Brand:: Analog Devices - ADI | Pack: BGA | D/C: 11+

Availability:: Supply Ability: 1/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Eric's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-28

From Other Seller

Part Number:ADV7123
US $3.24 - 4.59
ADV7123JST240

US $4.70 - 4.76 / Piece
(0) Remove
ADV7123KST-140

US $2.18 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

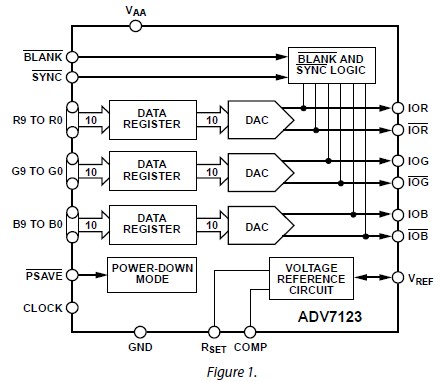

The ADV7123 is a triple high speed, digital-to-analog converter on a single monolithic chip. It consists of three high speed, 10-bit, video D/A converters with complementary outputs, a standard TTL input interface, and a high impedance, analog output current source. The applications of the ADV7123 include Digital Video Systems (1600 × 1200 @ 100 Hz), High Resolution Color Graphics, Digital Radio Modulation, Image Processing, Instrumentation, Video Signal Reconstruction.

Parametrics

ADV7123 absolute maxing ratings: (1)VAA to GND: 7 V; (2)Voltage on any Digital Pin: GND – 0.5 V to VAA + 0.5 V; (3)Ambient Operating Temperature (TA): -40℃ to +85℃; (4)Storage Temperature (TS): -65℃ to +150℃; (5)Junction Temperature (TJ): 150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃; (7)Vapor Phase Soldering (1 Minute): 220℃; (8)IOUT to GND2: 0 V to VAA.

Features

ADV7123 features: (1)330 MSPS Throughput Rate; (2)Triple 10-Bit digital-to-analog converters (DACs); (3)RS-343A/RS-170 Compatible Output; (4)Complementary Outputs; (5)DAC Output Current Range: 2.0 mA to 26.5 mA; (6)TTL Compatible Inputs; (7)Internal Reference (1.235 V); (8)Single-Supply 5 V/3.3 V Operation; (9)48-Lead LQFP Package; (10)Low Power Dissipation (30 mW Min @ 3 V); (11)Low Power Standby Mode (6 mW Typ @ 3 V); (12)Industrial Temperature Range (–40℃ to +85℃); (13)Pb-free (lead-free) package.
