AD694JNZ

AD694JNZ, monolithic current transmitter, DIP-16, +36 V, 4mA, Analog Devices

Rated 5 Rating 5 | reviews | Write a review

Price:: US $48.50~68.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	68.30 / Piece
1000 ~ 10000 :	48.50 / Piece

PartNumber:: AD694JNZ

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 1/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Eric's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-25

From Other Seller

Part Number:AD694JNZ
US $48.50 - 68.30
Quantity:

piece

Product Summary

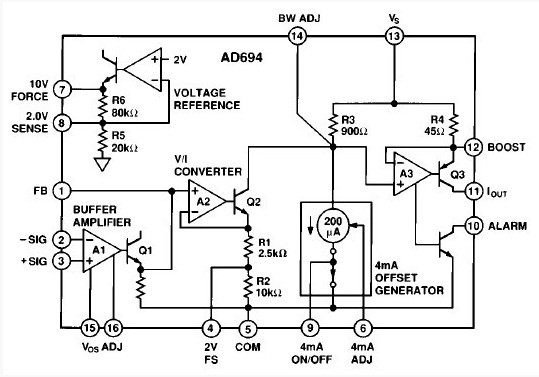

The AD694JNZ is a monolithic current transmitter that accepts high level signal inputs to drive a standard 4–20 mA current loop for the control of valves, actuators, and other devices commonly used in process control. The input signal of AD694JNZ is buffered by an input amplifier that can be used to scale the input signal or buffer the output from a current mode DAC. Precalibrated input spans of 0V to 2 V and 0 V to 10 V are selected by simple pin strapping; other spans may be programmed with external resistor.

Parametrics

AD694JNZ absolute maximum ratings: (1)Supply Voltage: +36 V; (2)VS to IOUT: +36 V; (3)Input Voltage, (Either Input Pin 2 or 3): –0.3 V to +36 V; (4)Reference Short Circuit to Common: Indefinite; (5)Alarm Voltage, Pin 10: +36 V; (6)4 mA Adj, Pin 6: +1 V; (7)4 mA On/Off, Pin 9: 0 V to 36 V; (8)Lead Temperature, 10 sec Soldering: +300℃; (9)Maximum Junction Temperature: +150℃; (10)Maximum Case Temperature, Plastic Package (N, R): +125℃; Cerdip Package (Q): +125℃; (11)Transistor Count: 75 Active Devices.

Features

AD694JNZ features: (1)4–20 mA, 0–20 mA Output Ranges; (2)Precalibrated Input Ranges: 0 V to 2 V, 0 V to 10 V; (3)Precision Voltage Reference; (4)Programmable to 2.000 V or 10.000 V; (5)Single or Dual Supply Operation; (6)Wide Power Supply Range: +4.5 V to +36 V; (7)Wide Output Compliance; (8)Input Buffer Amplifier; (9)Open-Loop Alarm; (10)Optional External Pass Transistor to Reduce: Self-Heating Errors; (11)0.002% typ Nonlinearity.
