74LCX04MX

74LCX04MX, Low Voltage Hex Inverter, SQP, -0.5 to +7.0 V, ±100 mA, Fairchild Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.13~0.13 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 1000 :	0.13 / Piece
10000 ~ 100000 :	0.13 / Piece

PartNumber:: 74LCX04MX

Brand:: Fairchild Semiconductor - Fairchild | Pack: SQP | D/C: 11+

Availability:: Supply Ability: 1/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. Eric's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-01-23

From Other Seller

Part Number:74LCX04MX
US $0.13 - 0.13
Quantity:

piece

Product Summary

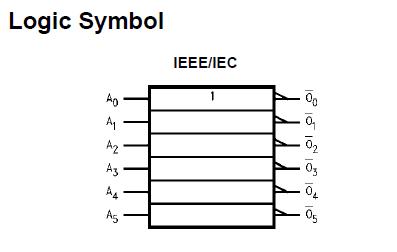

The 74LCX04MX is a Low Voltage Hex Inverter with 5V Tolerant Inputs. The 74LCX04MX contains six inverters. The inputs tolerate voltages up to 7V allowing the interface of 5V systems to 3V systems. The 74LCX04MX is fabricated with advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.

Parametrics

74LCX04MX absolute maximum ratings: (1)VCC, Supply Voltage: -0.5 to +7.0 V; (2)VI, DC Input Voltage: -0.5 to +7.0 V; (3)VO, DC Output Voltage, Output in HIGH or LOW State: -0.5 to VCC +0.5V; (4)IIK, DC Input Diode Current, VI <& GND: -50 mA; (5)IOK, DC Output Diode Current, VO <& GND: -50 mA; VO > VCC: +50mA; (6)IO, DC Output Source/Sink Current: ±50 mA; (7)ICC, DC Supply Current per Supply Pin: ±100 mA; (8)IGND, DC Ground Current per Ground Pin: ±100 mA; (9)TSTG, Storage Temperature: -65 to +150℃.

Features

74LCX04MX features: (1)5V tolerant inputs; (2)2.3V–3.6V VCC specifications provided; (3)5.2 ns tPD max (VCC=3.3V), 10 μA ICC max; (4)Power down high impedance inputs and outputs; (5)r24 mA output drive (VCC=3.0V); (6)Implements patented noise/EMI reduction circuitry; (7)Latch-up performance exceeds JEDEC 78 conditions; (8)ESD performance: Human body model: 2000V; Machine model: 200V; (9)Leadless Pb-Free DQFN package.
