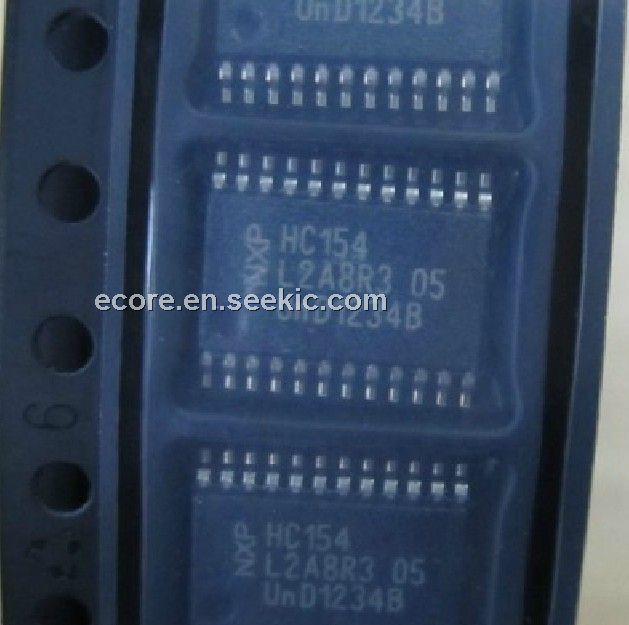

Product Summary

The 74HC154PW is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). The 74HC154PW is specified in compliance with JEDEC standard no. 7A. The 74HC154PW decoders accept four active HIGH binary address inputs and provide 16 mutually exclusive active LOW outputs. The two-input enable gate can be used to strobe the decoder to eliminate the normal decoding “glitches” on the outputs, or can be used for the expansion of the decoder.

Parametrics

74HC154PW absolute maximum ratings: (1)VCC supply voltage: -0.5 to +7.0 V; (2)IIK input diode current VI < -0.5 V or VI > VCC + 0.5 V; note 1: ±20 mA; (3)IOK output diode current VO < -0.5 V or VO > VCC + 0.5 V; note 1: ±20 mA; (4)IO output source or sink current -0.5 V < VO < VCC + 0.5 V; note 1: ±25 mA; (5)ICC, IGND VCC or GND current note 1: ±50 mA; (6)Tstg storage temperature: -65 to +150℃; (7)Ptot power dissipation Tamb = -40℃ to +125℃: 300 mW.

Features

74HC154PW features: (1)16-line demultiplexing capability; (2)Decodes 4 binary-coded inputs into one 16 mutually exclusive outputs; (3)Complies with JEDEC standard no. 8-1 B; (4)ESD protection: HBM EIA/JESD22-A114-B exceeds 2000 V; MM EIA/JESD22-A115-A exceeds 200 V; (5)Specified from -40℃ to +85℃ and -40℃ to +125℃.

Diagrams

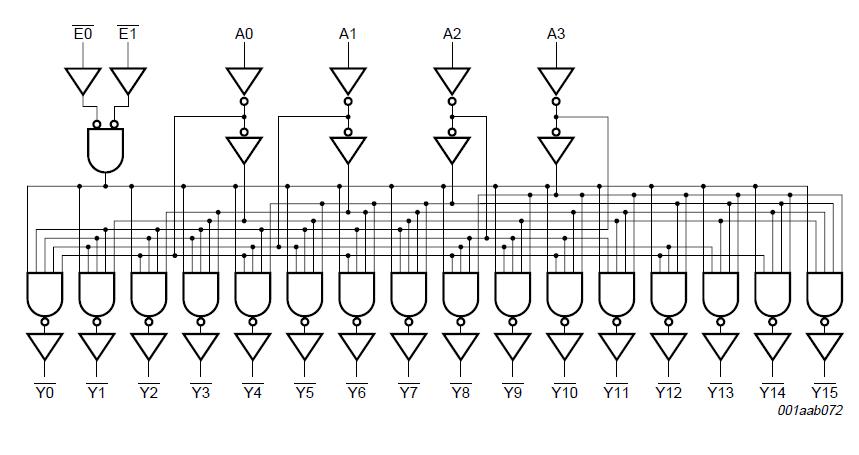

74HC154PW block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
74HC154PW
74HC154PW

NXP Semiconductors

Encoders, Decoders, Multiplexers & Demultiplexers 4-16 DECODER/DEMUX

Data Sheet

Negotiable
74HC154PW,112
74HC154PW,112

NXP Semiconductors

Encoders, Decoders, Multiplexers & Demultiplexers 4-16 DECODER/DEMUX

Data Sheet

0-830: $0.40
830-1000: $0.29
1000-3000: $0.28
3000-6000: $0.27
74HC154PW,118
74HC154PW,118

NXP Semiconductors

Encoders, Decoders, Multiplexers & Demultiplexers 4-16 DECODER/DEMUX

Data Sheet

0-1800: $0.29
1800-2500: $0.29
2500-3000: $0.28
3000-6000: $0.27
74HC154PW-T
74HC154PW-T

NXP Semiconductors

Encoders, Decoders, Multiplexers & Demultiplexers 4-16 DECODER/DEMUX

Data Sheet

Negotiable
