Product Summary

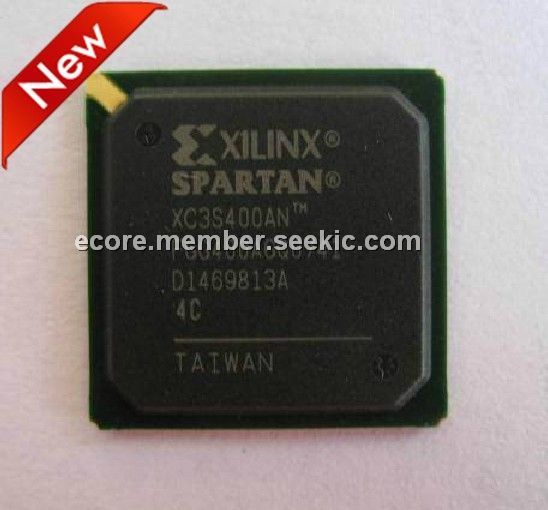

The XC3S400AN-4FGG400C is a Field-Programmable Gate Array. It is specifically designed to meet the needs of high volume, cost-sensitive consumer electronic applications. It offers densities ranging from 50,000 to five million system gates.

Parametrics

XC3S400AN-4FGG400C absolute maximum ratings: (1)VCCINT, Internal supply voltage: 鈥?.5 to 1.32 V; (2)VCCAUX, Auxiliary supply voltage 鈥?.5 to 3.00 V; (3)VCCO, Output driver supply voltage 鈥?.5 to 3.75 V; (4)VREF, Input reference voltage 鈥?.5 to VCCO+0.5 V; (5)TSOL, Soldering temperature: 220鈩?max; (6)TSTG, Storage temperature: 鈥?5 to 150鈩?

Features

XC3S400AN-4FGG400C features: (1)Revolutionary 90-nanometer process technology; (2)Very low cost, high-performance logic solution for high-volume, consumer-oriented applications; (3)Abundant logic cells with shift register capability; (4)Wide multiplexers; (5)Fast look-ahead carry logic; (6)Dedicated 18 x 18 multipliers; (7)JTAG logic compatible with IEEE 1149.1/1532 specifications.

Diagrams

<IMG src="http://www.seekic.com/uploadfile/ic-mfg/201253024822730.jpg" border=0>

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
XC3S400AN-4FGG400C
XC3S400AN-4FGG400C


IC SPARTAN-3AN FPGA 400K 400FBGA

Data Sheet

0-1: $16.72
