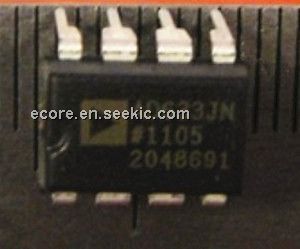

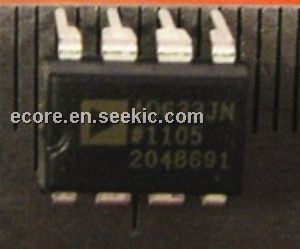

Product Summary
The AD633JN is a functionally complete, four-quadrant, analog multiplier. It includes high impedance, differential X and Y inputs and a high impedance summing input (Z). The low impedance output voltage is a nominal 10 V full scale provided by a buried Zener. The AD633JN is laser calibrated to a guaranteed total accuracy of 2% of full scale. The applications of the AD633JN are Multiplication, Division, Squaring, Modulation/Demodulation, Phase Detection, Voltage-Controlled Amplifiers/Attenuators/Filters.
Parametrics
AD633JN absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Internal Power Dissipation: 500 mW; (3)Input Voltages: ±18 V; (4)Output Short Circuit Duration: Indefinite; (5)Storage Temperature Range: –65℃ to +150℃; (6)Operating Temperature Range: 0℃ to +70℃; (7)Lead Temperature Range (Soldering 60 sec): +300℃; (8)ESD Rating: 1000 V.
Features
AD633JN features: (1)Four-Quadrant Multiplication; (2)Low Cost 8-Lead Package; (3)Complete-No External Components Required; (4)Laser-Trimmed Accuracy and Stability; (5)Total Error Within 2% of FS; (6)Differential High Impedance X and Y Inputs; (7)High Impedance Unity-Gain Summing Input; (8)Laser-Trimmed 10 V Scaling Reference.
