Product Summary

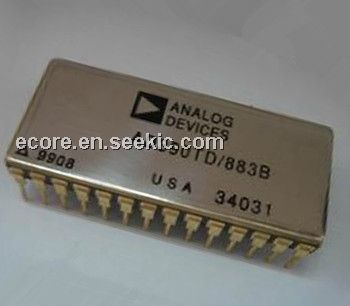

The AD390TD/883B is a quad 12-bit microprocessor which contains four 12-bit high speed voltage-output digital-to-analog converters in a compact 28-pin hybrid package. The AD390TD/883Bis based on a proprietary latched 12-bit DAC chip which reduces chip count and provides high reliability. The AD390TD/883B is ideal for systems requiring digital control of many analog voltages where board space is at a premium.

Parametrics

AD390TD/883B absolute maximum ratings: (1)+VS to DGND: 0 to +18V; (2)-VS to DGND: 0 to -18V; (3)Digital inputs(pin 1-12, 23-28) to DGND: -1 to +7V; (4)Ref In to DGND: ±Vs; (5)AGND TO dgnd: ±0.6V; (6)Storage temperature: -65 to +150℃; (7)Lead temperature: (soldering, 10 seconds): +300℃.

Features

AD390TD/883B features: (1)Four complete 12-bit DACs in one IC package; (2)Linearity error ±1/2LSB Tmin-Tmax; (3)Factory-trimmed gain and offset; (4)Buffered voltage output; (5)Monotonic guaranteed over full temperature range; (6)Double-buffered data latches; (7)Includes reference and buffer; (8)Fast setting: 8μs max to ±1/2LSB.

Diagrams

AD390TD/883B block diagram
