Product Summary
The 88E6218-LG01 is a Link Street Integrated Gateway Router which provides a superior level of functionality and performance for residential gateway applications. The Link Street 88E6218 device is an advanced single-chip gateway router device integrating a high-performance CPU for wire-speed routing, an advanced switching fabric with Quality of Service (QoS) support, fivve integrated Fast Ethernet (FE) PHYs, one MII port, a UART for debugging and modem backup, and advanced Virtual Cable Tester (VCT) cable diagnostics. The 88E6218-LG01 device is an ideal solution for residential gateway applications.
Parametrics
88E6218-LG01 absolute maximum rating: (1)CMOS low power dissipation PAVE = Less than 0.7W.
Features
88E6218-LG01 features: (1)Single-chip integration of a high-performance CPU, multi-port; (2)switch with PHYs, peripheral I/O ports and VCT technology; (3)ARM-9E CPU at up to 150 MHz clock frequency; (4)Five integrated FE PHY ports and one MII port: D Auto-MDI/MDIX crossover for 100BASE-TX and 10BASE-T ports; D One FE PHY port can be conTgured for copper (100BASE-TX or 10BASE-T) or Tber (100BASE-FX) connections; D MII Interface supports both MAC Mode (Forward MII) or PHY Mode ; (5)(Reverse MII), 7-wire SNI, or Reduced MII (RMII); (6)Virtual Cable Tester (VCT) technology.

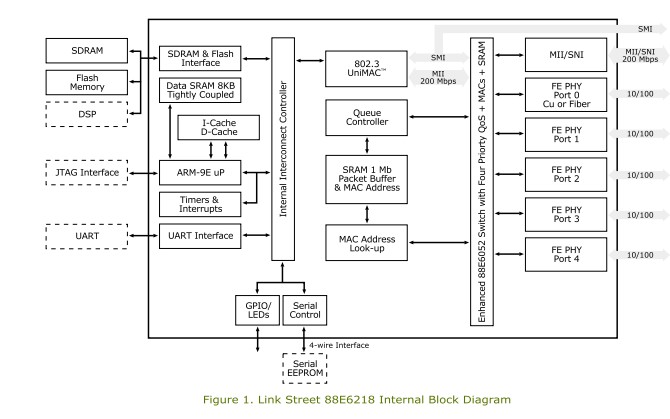

Diagrams
